Straight Flex Squeeze Connector Flexible Conduit Adapter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | ZINC DIE CASTING | SIZE: | 1/2"-4" |
|---|---|---|---|
| Name: | Flex Straight Connector | Name1: | Straight Flex Connector |
| High Light: | 2 inch Flex Squeeze Connector,30.3mm Flexible Conduit Adapter,35.6mm Flexible Conduit Adapter |
||

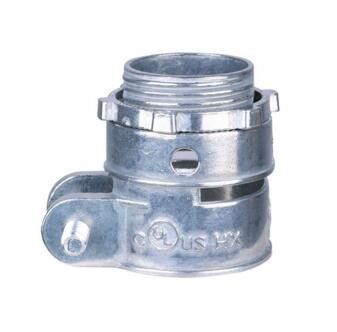

Straight Flex Squeeze Connector Flexible Conduit Adapter
·Available size: 3/8 inch to 2 inch
·Zinc Die Casting
·With smooth inner craftwork,no burr
·Matched with metal hose tightly
·With rich export experience to South America such as Colombia and Venezuela
| Cat# | Size | A | B | C | D | |
| BX | -50 | 1/2" | 30.3 | 28.5 | 26.3 | 16 |
| BX | -75 | 3/4" | 35.6 | 32.6 | 30.3 | 21.2 |
| BX | -100 | 1" | 38.9 | 40 | 37 | 27 |
| BX | -125 | 11/4" | 44 | 46.2 | 44 | 35 |
| BX | -150 | 11/2" | 48.5 | 54.2 | 51.2 | 40.6 |
| BX | -200 | 2" | 52.5 | 66.8 | 65 | 52.6 |
| BX | -250 | 21/2" | ||||
| BX | -300 | 3" | ||||
| BX | -400 | 4" | ||||
