4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable

4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable

4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable
4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable 4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable 4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable 4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable

Large Image :  4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable Get Best Price

Product Details:

Place of Origin: China
Brand Name: FZTL/OEM
Model Number: EWCfg16009

Payment & Shipping Terms:

Minimum Order Quantity: 500Meters
Price: To be negotiated
Delivery Time: 30-45Days
Payment Terms: L/C, D/P, T/T
Detailed Product Description
Insulation Ma: Rigid EPM Rubber Type: LOW VOLTAGE
Application: Industrial Conductor Mate: Copper
Jacket: PVC Rated Voltage: 0.6/1KV
Shield: No Price: Factory Direct Selling Price
High Light:

4x25mm2 Electric Wire Cable

,

0.6KV Electric Wire Cable

,

15N/mm² ectric Wire Cable

Electric Wire Cable 4x25mm2 Insulated With Rigid EPM- Rubber , PVC Sheathed , Fg16or16 Flexible Cable





Product Description:


Characteristic:
1. Flame retardant: EN 60332-1-2
2. Fire-resistant
3. It is free of silicone, cadmium and other harmful substances
4. Good resistance to grease and mineral oils.
5. Good flexibility and behaviour at low temperatures.
6. UV resistance.

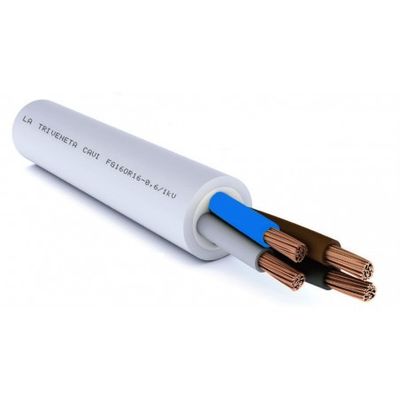

4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable 0


Application


FG16OR16 Cable suitable for energy supply in industry, building sites and construction industry. For fixed wiring indoors and outdoors, even wet; for direct and indirect underground wiring. Suitable for installation at open air, on walls, metal structures, cable trays, pipes, wiring holders and similar devices. Suitable for bundle installations in environments at risk of fire.


Technical data
Temperature range
Min. cable temp. at bending: 0 °C

Fixed installed: -25 °C up to +70 °C
Max. operating temp.: 90 °C
at short circuit of max. 5 s: up to 160 °C
Nominal voltage
U0/U 600/1000 V
Test voltage
4000 V
Minimum bending radius
Power: 4D
Signal: 6D
Maximal tensile strength
15 N/mm²
Cable structure
Conductor
Fine wired copper conductor, class 5, acc. to CEI EN 60228
Core insulation
Rigid EPM rubber (= HEPR, hard ethylene-propylene-rubber), quality G16, concentrically stranded cores, colour marked acc. to HRN
HD 308 S2 / VDE 0293-308, with or without protective yellow-green conductor
Core identification
HRN HD 308 S2 / CEI UNEL 00722
Outer sheath
Anti-abrasive PVC compound, type 16, fire-resistant with reduced release of corrosive gases, and with reduced water permeability
Sheath colour
Light grey (RAL 7035) or Customizable
Filler
Thermoplastic compound, fire-resistant with reduced release of corrosive gases, not water-absorbing



Packaging And Shipping:



4x25mm2 Insulated PVC Sheathed Flexible Electric Wire Cable 1



Packaging Details:



1)According to customer request, 100m/roll,200m/roll,300m/roll....
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.



Port: Fuzhou

Shipping:Support Sea Freight/Air Freight



FAQ


Q: What payments can be accepted?
A: T/T in advance, D/P at sight, L/C at sight, Paypal are available.


Q: Do you accept small order?
A: Yes, sample order is available.


Q: How to ship the cargos?
A: We usually ship by Airline, courier, and by sea.


Q: What's your warranty policy?
A: Our warranty period is 12months. Usually, all our products will be tested 100% one by one before delivery.


Q: Are OEM & ODM available?
A: Yes, both are available.


Q: Can we have our logo to be printed on the units or package?
A: For bulk order, we can print logo, customize package as your demands.


Q: Can we have one sample order or small order to try?
A: Yes, welcome to order small quantity for test at first.


Q: How could I get samples?
A: We can provide samples to you via your courier freight collect account.
